CAD Mapping

Our CAD maps are keenly priced. For more information please see our Ordnance Survey CAD mapping page.

OS Height Data

Ordnance Survey contours at 5m intervals are available with every DWG and DXF format map. More detailed height data is available with the Digital Terrain Model, for £15 with any DWG or DXF map.

For more information please see our CAD Mapping page.

Shapefiles now Free

We now offer free shapefiles with all purchases at UK Planning Maps. For more information please see our shapefile information page.

• PDF/DOC/JPG
• DXF/DWG

Our pdf maps are our most popular format for submitting planning application. If you want to edit the map document you can select MS Word format. All maps are available in both colour and black and white.

	A4 Paper Size	Samples	Price

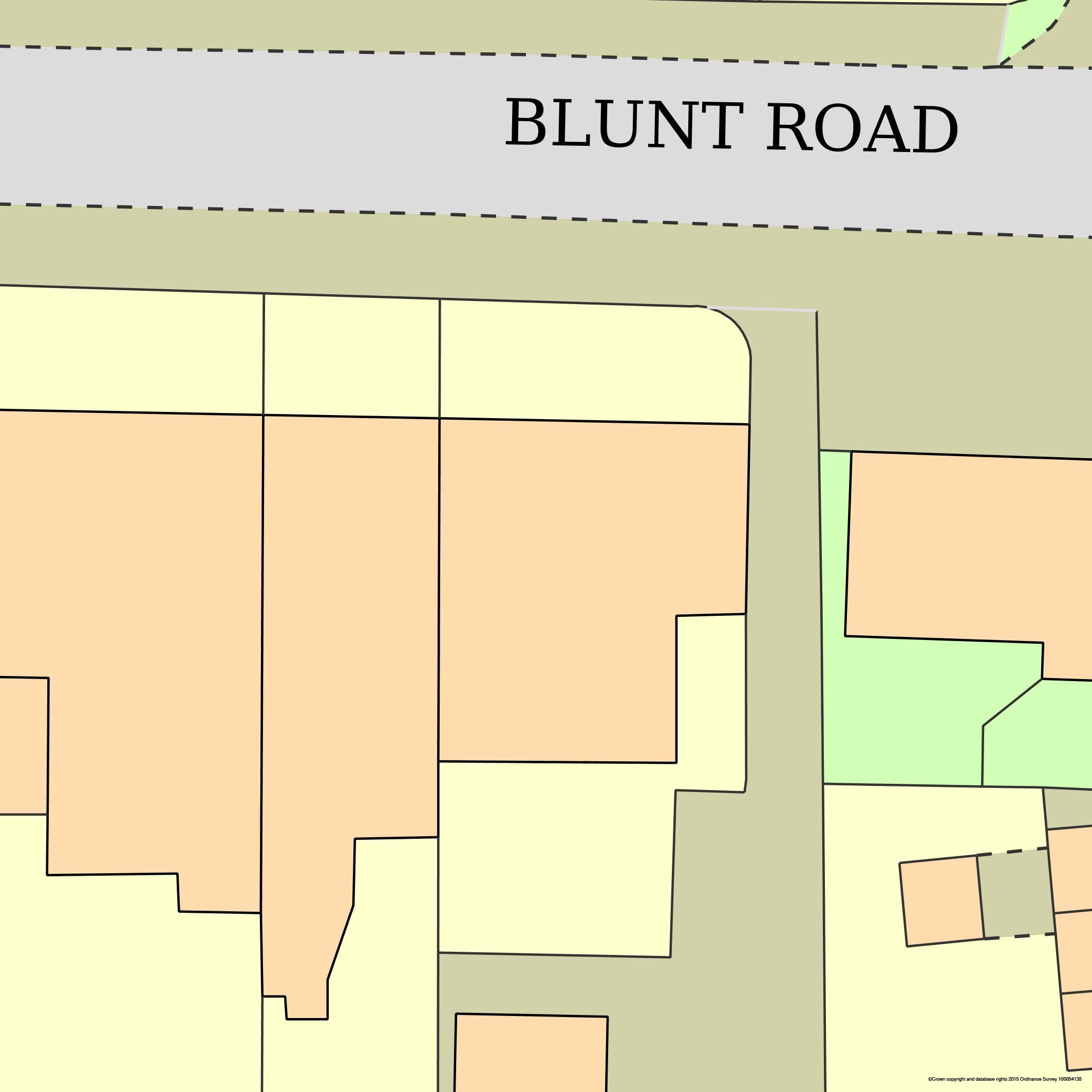

	Block Plan 18m x 18m 1:100 Scale	PDF MS Word JPG	£8.50

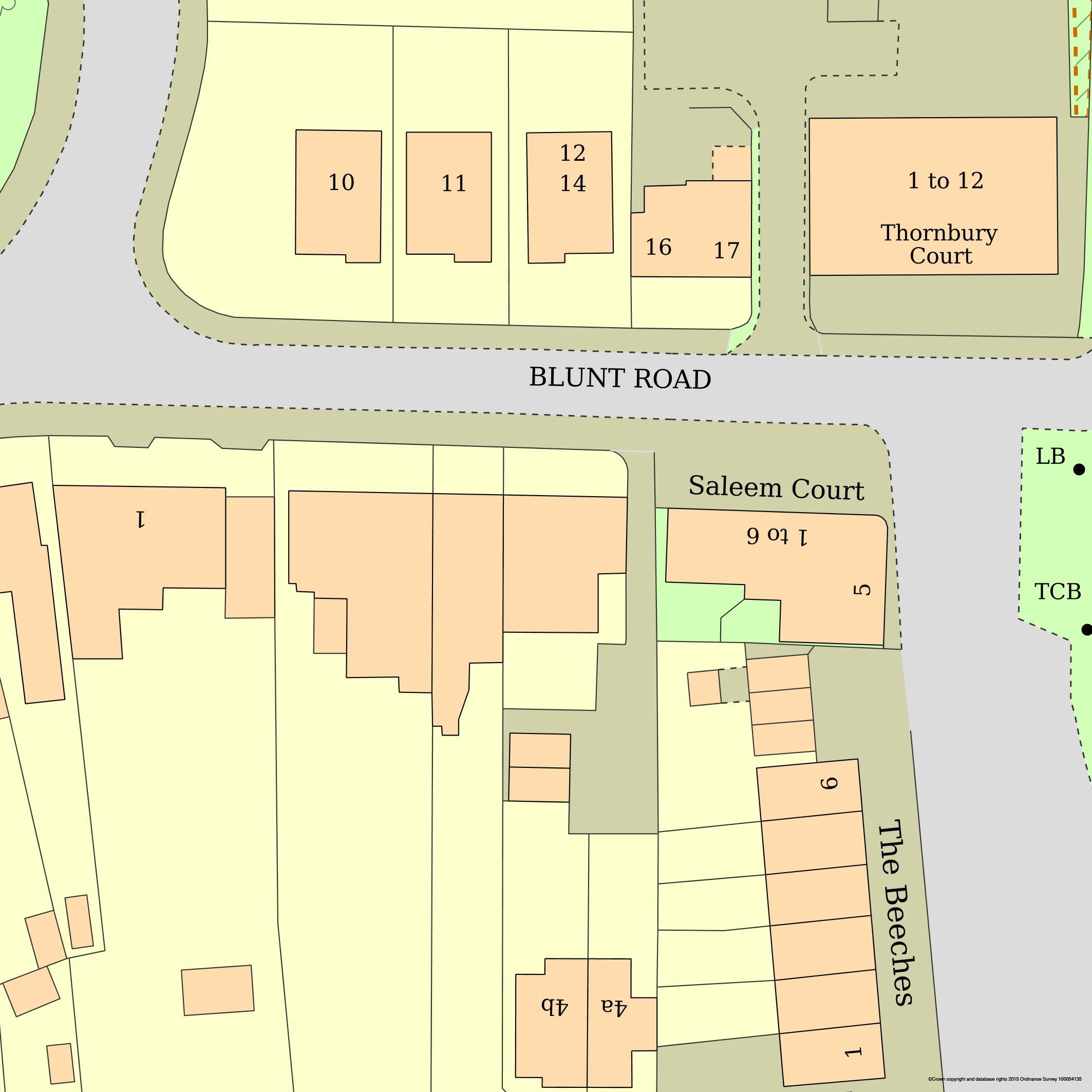

	Block Plan 36m x 36m 1:200 Scale	PDF MS Word JPG	£9.50
	Block Plan 90m x 90m 1:500 Scale	PDF MS Word JPG	£11.50

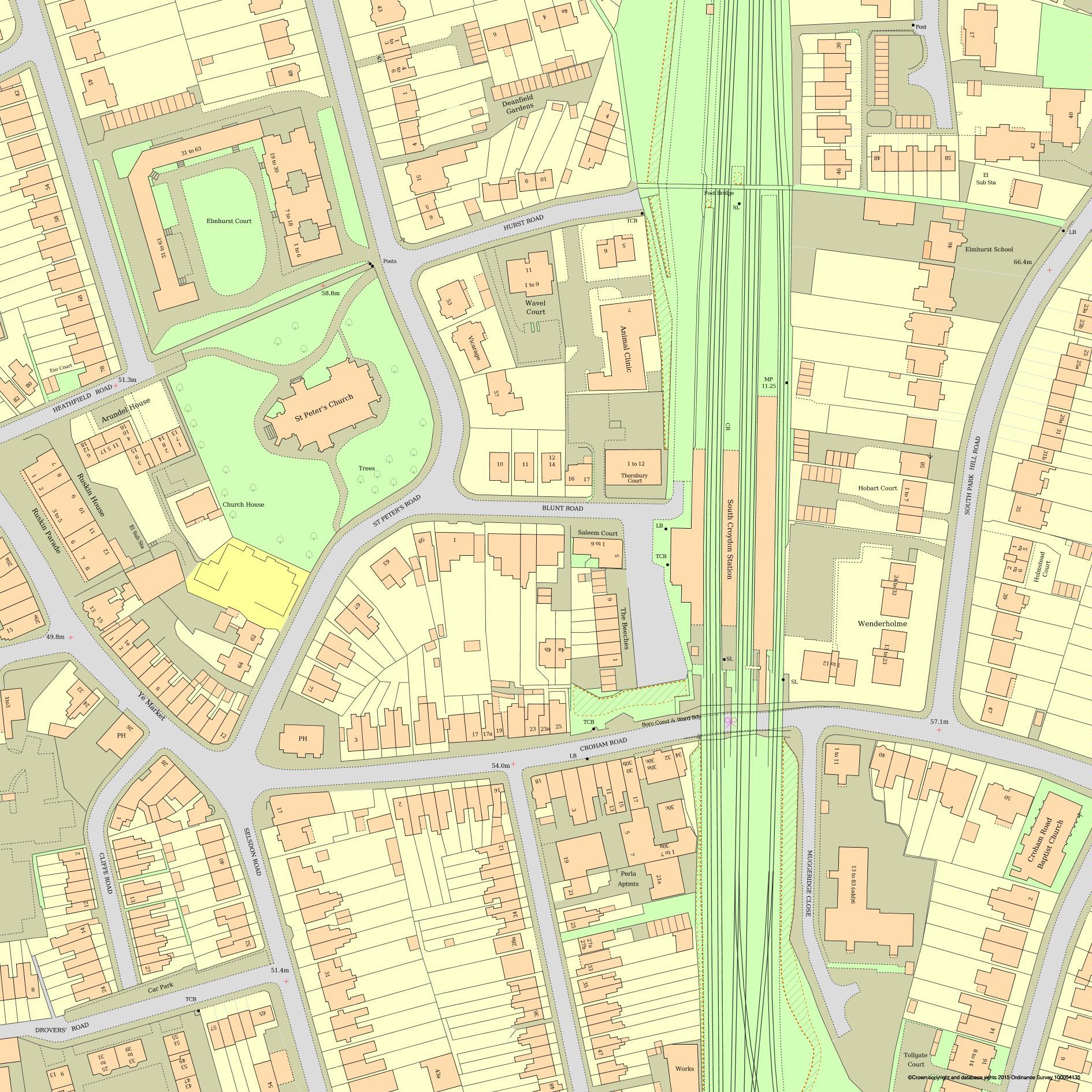

	Location Plan 2 Hectares 1:1,250 Scale	PDF MS Word JPG	£15.50
	Location Plan 4 Hectares 1:1,250 Scale	PDF MS Word JPG	£21
	Location Plan 8 Hectares 1:2,500 Scale	PDF MS Word JPG	£41
	Location Plan 16 Hectares 1:2,500 Scale	PDF MS Word JPG	£58

	A3 Paper Size	Samples	Price
	Block Plan 28 x 28 m 1:100 Scale	PDF MS Word JPG	£18
	Block Plan 52m x 52m 1:200 Scale	PDF MS Word JPG	£20
	Block Plan 128m x 128m 1:500 Scale	PDF MS Word JPG	£25
	Location Plan 9 Hectares 1:1,250 Scale	PDF MS Word JPG	£39.99
	Location Plan 36 Hectares 1:2,500 Scale	PDF MS Word JPG	£105

	A2 Paper Size	Samples	Price
	Block Plan 3.61 Hectares 1:500 Scale	PDF MS Word	£29.99
	Location Plan 22.56 Hectares 1:1,250 Scale	PDF MS Word JPG	£94
	Location Plan 90.25 Hectares 1:2,500 Scale	PDF MS Word JPG	£125

	A1 Paper Size	Samples	Price
	Block Plan 7.62 Hectares 1:500 Scale	PDF MS Word JPG	£35.50
	Location Plan 47.61 Hectares 1:1,250 Scale	PDF MS Word JPG	£105
	Location Plan 190.44 Hectares 1:2,500 Scale	PDF MS Word JPG	£170

All DXF/DWG maps include free contour lines at 5m height intervals. If you require more detailed height information we have a Digital Terrain Model (DTM) option that gives mean average heights for every 5m square across Great Britton.

		samples	price
	DWG/DXF CAD Map 1 Hectare 100m x 100m	DXF DWG	£16
	DWG/DXF CAD Map 2 Hectares 141.42m x 141.42m	DXF DWG	£24.50
	DWG/DXF CAD Map 4 Hectares 200m x 200m	DXF DWG	£45
	DWG/DXF CAD Map 10 Hectares 316m x 316m	DXF DWG	£110
	DWG/DXF CAD Map 20 Hectares 447m x 447m	DXF DWG	£149
	DWG/DXF CAD Map 50 Hectares 707m x 707m	DXF DWG	£240
	DWG/DXF CAD Map 100 Hectares 1000m x 1000m	DXF DWG	£315
	DWG/DXF CAD Map 200 Hectares 1414m x 1414m	DXF DWG	£390
	Digital Terrain Model	DXF DWG	£15

All sales are subject to VAT at the prevailing rate.

Printed Copies

£6 for 4 Colour copies of any map ordered. (pdf/word/jpg only)

Select this option at Checkout.

Height Data

All DXF/DWG files can include 5m contour lines.

DTM data giving mean heights for every 5m square are also available for a small fee.
