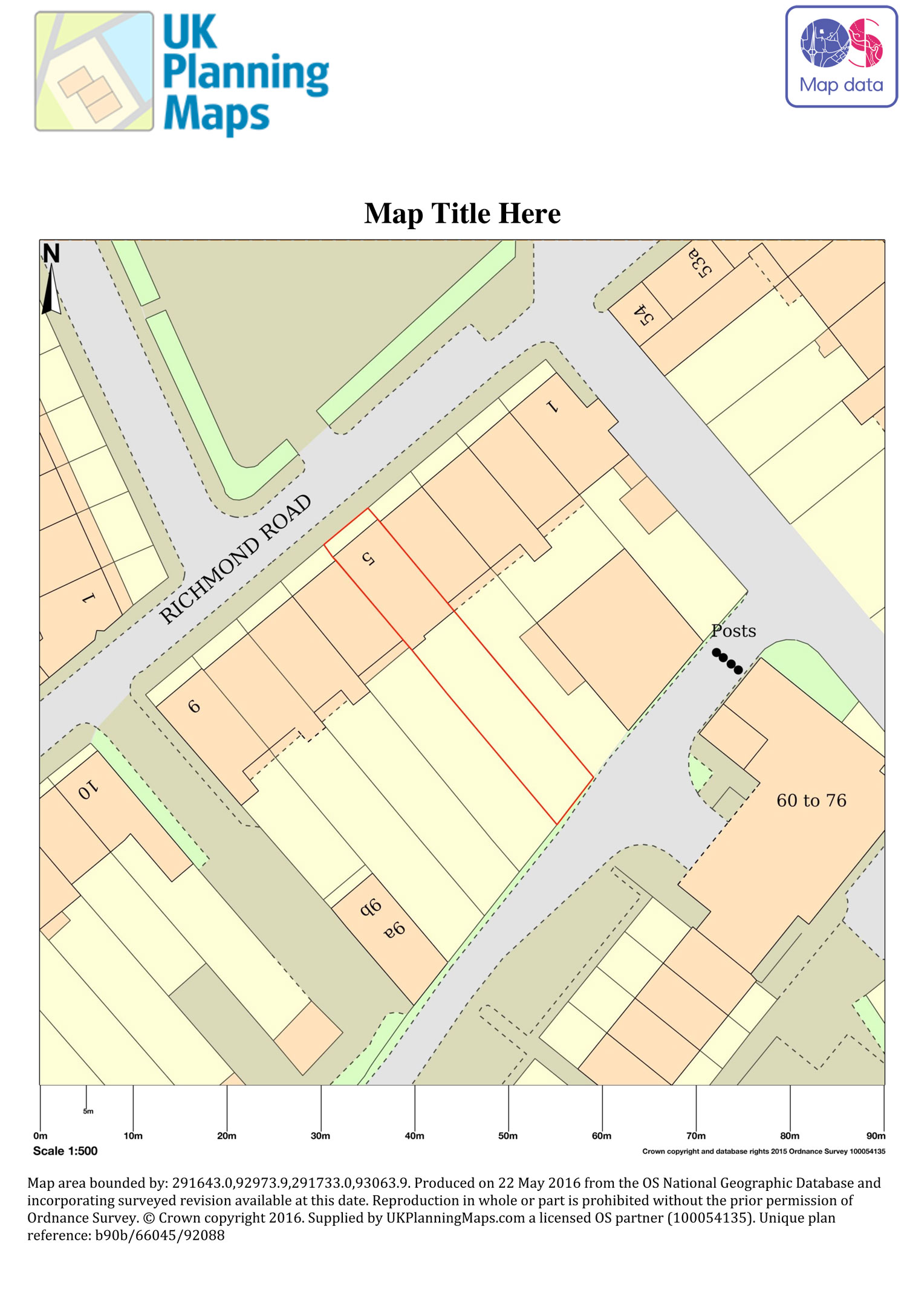

Example of acceptable Site Plan:
Site Plan Approved for council requirements

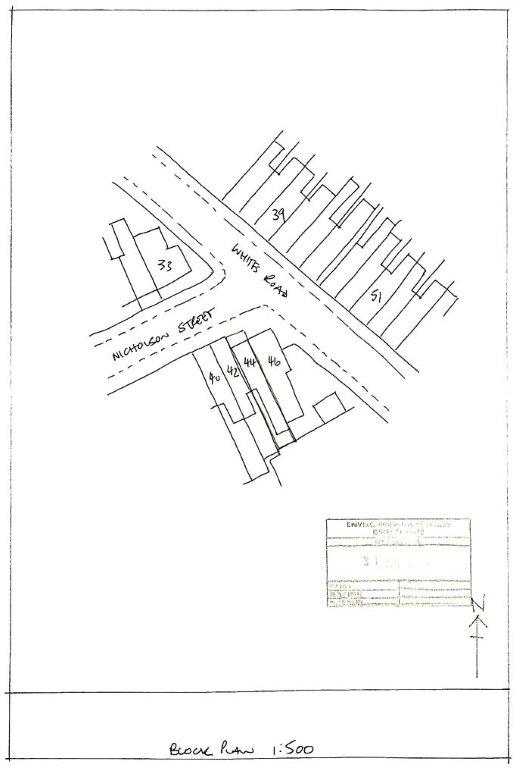

Example of a rejected Site Plan:
Block Plan Rejected By Council

Order by Phone on: 01856 898 022


Our Site Plans Are...

  • Cheapest Online
  • Guaranteed for planning
  • Most up to date available
  • Emailed to you immediately
  • Come with free print copies


Check your Block Plan or Site Plan

To ensure you get your Block Plan or Site Plan right first time please see our Diagram of a Block Plan


Reviews of Site or Block Plans

4.93 Average

71 Reviews

Mr Douch

Very fast and efficient service. East to navigate web site

Mr lothian

Easy to use site and very quick to send.

Mr Green

Excellent prompt service, thankyou.

Mr OKeeffe

Great system. Easy to use.


Easy to use good quality

Mrs Shires

Excellent service - Rachel was incredibly helpful and knowledgeable and the map was online almost before I had out the phone down. Would definitely use them again.

Mr Spriggs

The required map was located quickly and UK Planning Maps provided an efficient service.


Helpful , efficient and professional . I know nothing at all about site plans and Rachel made everything very easy . Thank you .


I’m unfamiliar with maps and plans but found it quick and easy to use. There’s one or two things that could be improved, or that I need to discover if they’re there, to make it slightly easier. It took me longer than I had anticipated (because I was fussy!) but I achieved very pleasing results. I recommend it and give five stars.

Mr millar

Good and easy to use

Mrs McConnell

Very good and straight forward

Mr Redman

Fast and professional service. Thank you

Mrs Nash

I managed to order on line but needed to phone in. The lady I spoke to was extremely helpful. Very pleased.

Mr Bazeghi

good service


This was the first time that I have used this site. I found it very easy to navigate and excellent value for money. I would have no hesitation in recommending this site.


This was the first time that I have used this site. I found it very easy to navigate and excellent value for money. I had one query (about the Northing arrow) and phoned to check this. Despite it being the holiday period, I got an immediate reply which answered my question. I would have no hesitation in recommending this site.

Mr Leah

good quality and very fast delivery. Received on email

Mrs Ayub

Had to phone up because all my requirements couldn’t be implemented through recommendations. A very polite and understanding person, answered my call, who was very professional and guided me through the process. Within 10mins my site location was submitted and accepted. Really pleased with the service from UK planning maps. Will definitely use their service if needed without hesitation.

Mr Abbas

Very easy and simple process

Mr Allen

This was my first map purchase from UK Planning Maps. I was impressed with the ability to centre the required map on exactly the position needed and also with the facility to outline the site edged red and inset a title text before finalising the map purchase. The speed of production of the on-line map and its quality were impressive and I have to say that the price charged represented good value for money. The administrative steps required to place my first order were very easy and straightforward to follow, even though I was setting an account up for the first time. Needless to say I shall be using UK Planning Maps again - I can't fault the service at all - and by the way I have had no previous dealings with this Company whatsover

Mr Frost

Once I got my head around the system, about 5 minutes in my case, it was easy. Very pleased with the quality of the 'free' printouts.

Site Plan or Block Plan At a Glance

Normal Scales: 1:200 and 1:500

Paper Size: A4 or A3

Coverage: 36m x 36m or larger

File Type: PDF or Printed copies

Must include: North Arrow, Scale, Licence Number

Colour Format: Colour or Black and White

Should show entire development site

What is a Site Plan?

All planning applications* need site plan (also known as a block plan) which shows the development in detail and a site location plan (also known as a location plan) which shows the proposal in its surrounding context. These plans enable the local planning authority (LPA) to identify the land to which the application refers to and should be based on an up-to-date Ordnance Survey map.

For a list of other reasons you may need a site plan please see Applications that Require a Site or Block Plan

This guide outlines what Site Plan you must submit with your application. You can create and buy the plan you need from us and attach this to your online application. If you are posting your application, you will need to send 4 copies of your Site Plan.

Help to Create your Site Plan

Please read through the following information to ensure you select the Block Plan you need. If you need any help creating your Site Plan please give us a call on our helpline 01856 898 022.

Requirements for your Site Plan

The site plan (also called a "block plan") should be drawn at an identified standard metric scale - this is normally 1:200 or 1:500. It should show the proposed development in relation to the site boundaries and other existing buildings on the site, with dimensions specified including those to the boundaries. It should also show the direction of North.

It should also include the following – unless they would NOT influence or be affected by the proposed development:

  • All buildings, roads and footpaths on land adjoining the site including access arrangements.
  • All public rights of way crossing or adjoining the site.
  • The position of all trees on the site, and those on adjacent land.
  • The extent and the type of any hard surfacing.
  • The boundary treatment including walls or fencing where this is proposed.

What Maps are used for Site Plans?

Your Site Plan needs to be based on up to date accurate mapping. We offer Ordnance Survey's Mastermap® data as the basis for all our Site / Block plans as we believe this is the best mapping available of Great Britain. Due to the very high quality of their data we can guarantee this will be accepted by your planning department.

Here's what Ordnance Survey say about their Mastermap® Database

"It is a continually updated database, containing 450 million geographic features found in the real world..." read more

All of our Site / Block plans are guaranteed to meet your council's requirements for planning applications.

There are a number of other applications you may need a site plan for, please see our applications that require a site plan page for more details and call us if you need further details.

How Much will the Site Plan cost?

You can create your Site Plan yourself online which can cost as little as £8.50 + VAT for the pdf. Some companies do charge more than this so it does pay to shop around.

Bear in mind that if you buy from one of the Suppliers that pay to advertise on the Planning Portal your Site Plan will cost more, however it is exactly the same map as provided by all the Ordnance Survey licensed partners.

If you have your architect create your plan you will also need to pay their fees as well.

Create your Site Plan yourself in Minutes

Enter your postcode, you'll see a preview of your map and you'll be able to add the outlines you need. We will format your site plan as a pdf and send it to you instantly.

What format will my Site Plan be?

Site Plans are normally provided in PDF or jpeg format. We also offer Site or Block plans in MS Word format, to allow you to edit or add extra annotations as needed.

Submitting Paper Copies of Site Plan

You can submit your site plan to your council in hard copy as paper documents. It is often easier to mark up your annotations on the paper document.

When ordering your site or block plan some companies will also sell you printed copies of your map, but beware this can cost as much as the map itself again!

Printing Your Site Plan at Home

Under the licence terms of your Ordnance Survey Site Plan you can print your map at home, but only 1 copy. However, most councils will require at least 3 copies of your site plan. It is best to order any printed copies you need from your map supplier.

If you need printed copies of your site plan please let us know at the time of ordering and we will send you out 6 free paper copies, you only pay for the P&P.

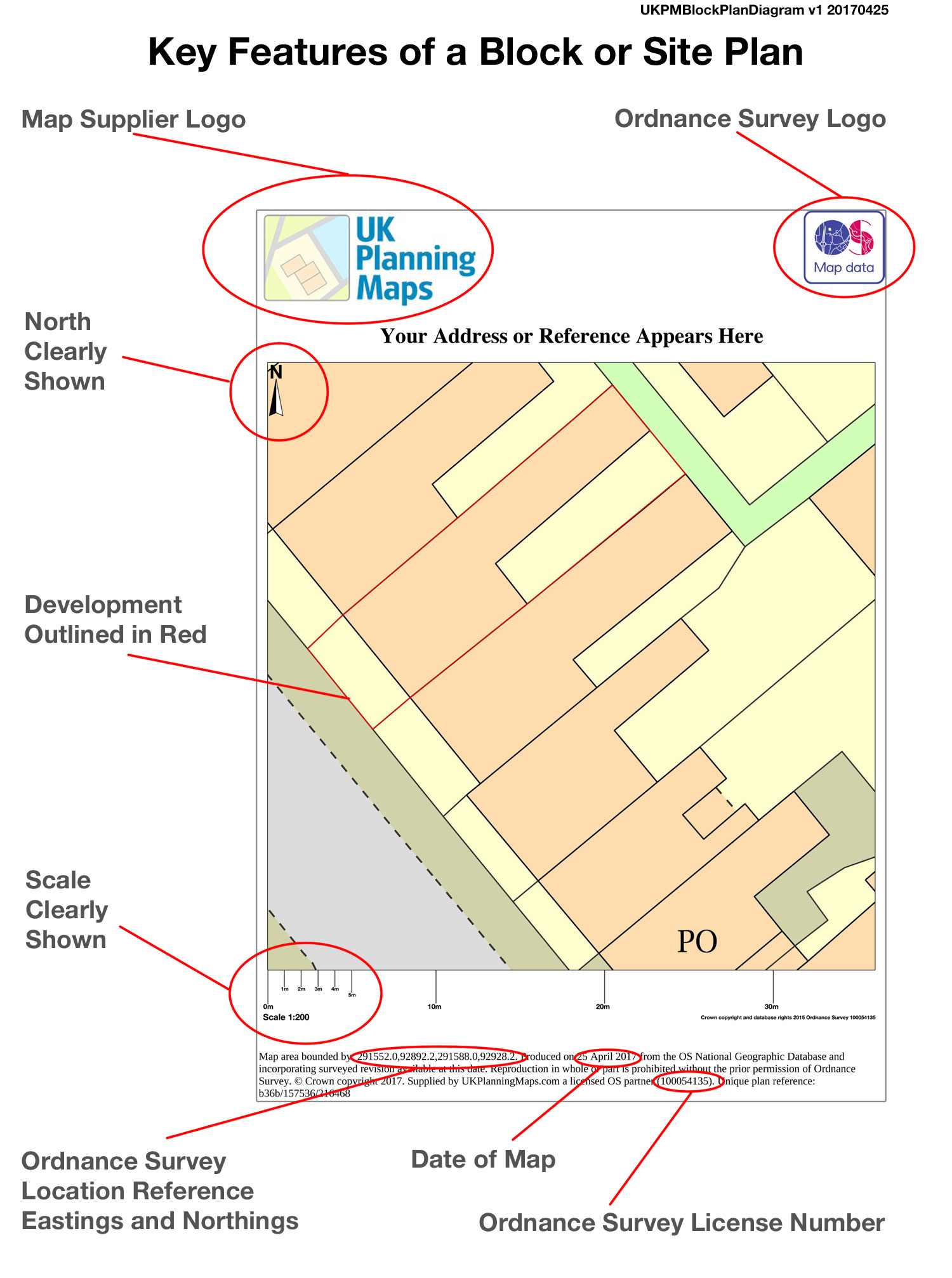

Diagram of Site or Block Plan

Please review our diagram of a Site Plan. This shows the necessary elements of your Site Plan or Block Plan.
