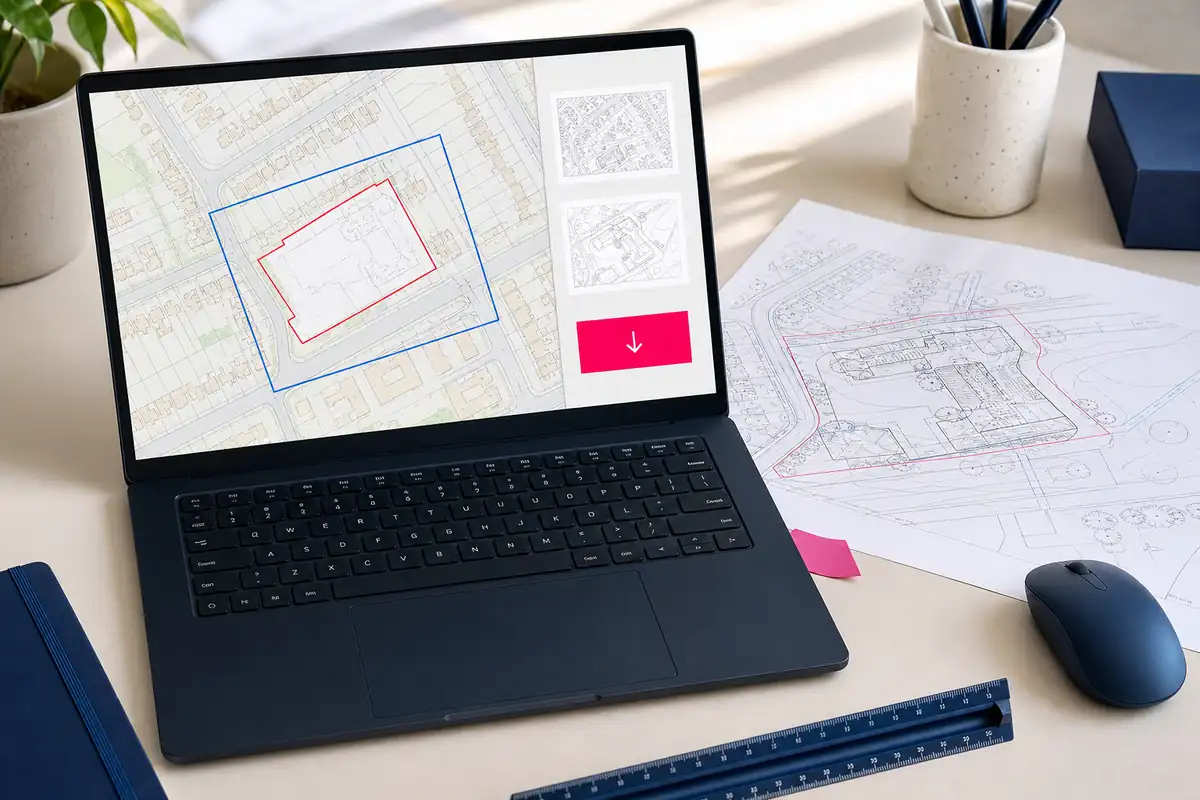

A CAD map gives an architect, designer or surveyor editable mapping for planning drawings. They can add the proposal and prepare drawings at the required scale without tracing a PDF. Before downloading, confirm that the format, units, coordinates, layers and coverage suit the person who will use it.

What is a CAD map, and when is one useful?

A CAD map is digital mapping for computer-aided design software. DWG and DXF are common formats. They can contain layered linework for buildings, roads, boundaries and other features.

It is normally a starting point, not a complete planning drawing. The designer must add the proposal and application boundary.

CAD mapping helps place a proposal in its surroundings, coordinate site information and keep several drawings on the same base. It can be cropped, annotated and combined with other CAD work.

For a straightforward application, a finished PDF may be enough. Order CAD where editable linework is genuinely useful, after asking the designer which output they need.

Define the job before you download CAD maps

Start with the finished drawing. A location plan identifies the wider site, commonly at 1:1250 or 1:2500. A site plan or block plan gives closer detail, often at 1:500 or 1:200. These are typical scales; local requirements may differ.

The 1:1250 location plan scale guide explains the wider plan; the block plan definition covers the closer drawing. The intended plan sets the coverage.

Then ask the recipient a few practical questions:

• Do they need DWG, DXF or another agreed format?
• Which software and version will open the file?
• What drawing units should be used?
• Do they expect real-world coordinates or a local drawing origin?
• Which layers or mapped features are required?
• How much land should the file cover?
• Will they add the red line and blue line, or should marked-up information be supplied separately?

Do not assume every DWG or DXF works in every program. Confirm file type, version and software with the recipient and provider before purchase.

Too little coverage may omit a road, access or neighbour; too much can make the file unwieldy. Give the provider a clear site centre or boundary and explain the drawing's purpose.

It also helps to separate map coverage from printed scale. CAD geometry is often held at real-world size in model space, with the final 1:1250, 1:500 or other scale set when a paper layout or viewport is prepared. Workflows differ, so ask the drafter how they expect to receive and plot the file. Do not rescale the source linework merely to make it look right on screen.

UK Planning Maps CAD files are georeferenced and include OS grid or Easting and Northing information. When combining them with survey or engineering data, confirm that the recipient is working with the same coordinate system and drawing origin. A team that normally works around a local project origin may need to reference the file correctly. Two files that look right separately will not necessarily align unless their coordinates, units and origins are understood.

Licensed mapping versus a copied image

A screenshot is an image, not editable CAD. It may lack dependable scale, detail, coordinates and suitable permission. Enlarging or tracing adds uncertainty.

Ordnance Survey mapping is a common planning base in Great Britain because it offers consistent detail and can be suitably licensed. It is not universally mandatory; check what the authority accepts. Coverage and data arrangements differ in Northern Ireland, so confirm availability before ordering for a site there.

Ask what the licence allows, how to acknowledge the source and whether the file can be shared with the project team. Licensed data is not unrestricted artwork.

Mapping does not prove a legal boundary. Draw the planning red line from the relevant application and ownership information, taking advice where uncertain.

A practical CAD map download workflow

1. Confirm the recipient's requirements

Ask the architect or drafter to confirm format, software version, units, coordinates and coverage. If they have a survey base, ask how the mapping should align.

Where the supplier and recipient use different software, DXF or DWG may behave differently. Neither is universally compatible.

2. Locate and define the site

Find the property by address, postcode, coordinates or map search. Check buildings, roads and access. For land without an address, provide a clear centre, coordinate or boundary.

A location plan needs recognisable surroundings; a site or block plan needs immediate context. CAD may be drawn at real-world size, with scale applied at layout, so confirm coverage and output scale.

3. Choose DWG or DXF and check the details

Use the agreed format and confirm units and coordinates. CAD drawings can be unitless, so measure a known distance before inserting or scaling the map. Metres treated as millimetres appear at the wrong size; real-world coordinates can sit far from a local-origin project.

Ask how layers organise text, buildings, roads and other features. Names and content vary, so check that essential detail is included.

4. Download and keep the original file

Save an untouched download with its licence note, order reference, units and coordinate information. If compressed, extract a working copy while preserving the original.

Use a clear project folder and filename, adding the site reference and date where appropriate. Avoid vague names such as map-final.dwg.

5. Open or ask the drafter to verify it

If you have suitable software, check the area and layers. Otherwise, ask the intended recipient to verify the file before design starts.

Check format, version, units, coordinates, layers, coverage and geometry. This does not guarantee the map alone meets every planning requirement.

6. Add the planning information

The designer can build the planning drawings on the mapping. The site is normally red, with nearby owned land blue where required. See the red line boundary guide.

The final drawing should show the required scale, north point and title, with proposed work distinct from existing features. Compare boundary, address, access and building position before submission.

Common CAD-map problems

A common problem is the wrong file type or version. DWG and DXF are not interchangeable in every program, and conversion can affect text, layers or line types. Confirm first.

Wrong units make files enormous or tiny. Different coordinates can place mapping far from the project. Check units, coordinate system and insertion method before moving or scaling it.

A tight extract can omit access or context; a broad one adds data. Define the job and boundary before choosing coverage.

Layer structures may not match office standards. The recipient may need to rename or restyle them, so check essential features before drafting.

A CAD map is not a finished submission. It still needs the boundary, proposal, scale and drawing information; do not upload raw CAD in place of a requested PDF.

Keep the original. If linework is deleted, shifted or rescaled, a clean copy allows recovery and checking.

A simple handover to another drafter

When another drafter will use the CAD map, include a short handover stating:

• The site address or project reference
• The intended drawing, such as location plan or block plan
• The supplied file type and version, if known
• The stated units and coordinate information
• The requested map coverage and date supplied
• Where the proposed red line and any blue line information can be found
• Any licence note or use restriction provided with the mapping

Where useful, include a small reference PDF or screenshot showing the intended site and coverage. This helps the recipient recognise that the correct extract has arrived, but it does not replace the editable file or its coordinate information. If boundary instructions are supplied on a marked PDF, say clearly whether they are final or still need confirmation.

Keep version control simple. Send one clearly named source file, identify any later replacement and avoid circulating several attachments called “final”. If email or a document portal changes the filename, note the original name in the handover. The drafter should be able to trace the working drawing back to the mapping that was actually supplied.

Include the relevant validation requirement and say who checks the application boundary. The designer can draw the line, but needs accurate information about the land included.

Ask the recipient to confirm the file opens before design begins. Describe any problem precisely: wrong units, missing coverage, unreadable layers or unsupported version.

To download CAD maps successfully, define the finished drawing, confirm technical details and coordinate the mapping, boundary and proposed design. That makes the planning application easier to prepare and understand.
