A PDF planning map is ideal when you need a finished document to view, print or upload. It is less useful when the map needs to become part of the drawing itself. Architects, technicians and designers often need an editable base that can sit inside their CAD workflow, which is where a DWG map earns its place.

This guide explains how a DWG map fits into an architect's planning workflow, how it differs from DXF and PDF, and what to check before you start drawing over it. The aim is not to turn a simple file choice into a technical exercise. It is to help you order mapping that fits the way the project will actually be produced.

What is a DWG map?

DWG is the native drawing-file format used by AutoCAD-based products. It can hold vector geometry, text, layers and other drawing information rather than presenting the map as a fixed page. Autodesk's guide to the DWG format explains why it is widely used by architects, engineers and other design professionals.

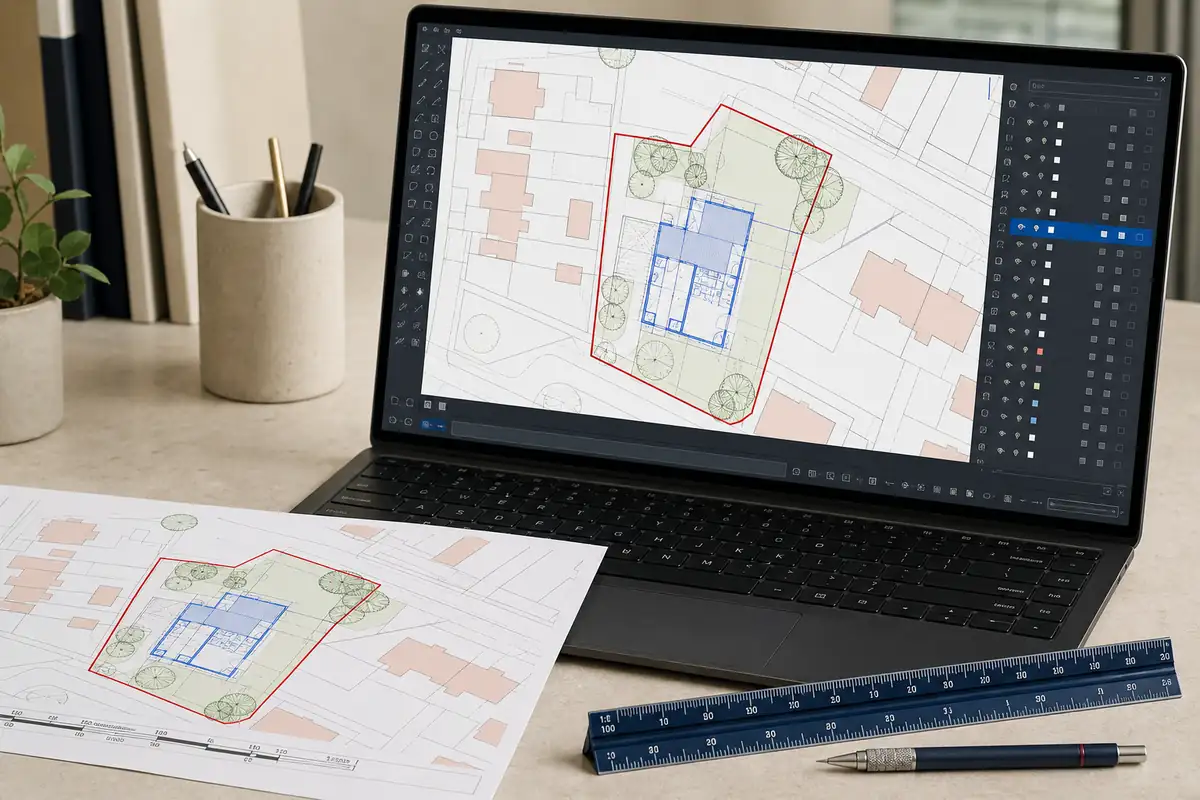

An Ordnance Survey DWG gives you mapping as CAD data. Buildings, roads, paths and other mapped features can be brought into a drawing and used as the existing-site base for proposed work. Because the content is made from lines and shapes rather than one flat image, you can control its appearance and combine it with your own information.

Why architects use DWG mapping

The practical advantage is that the base map joins the drawing process rather than sitting beside it. You can use the same mapped context while preparing a site plan, testing the position of an extension or setting out a wider site drawing.

A DWG map can be useful when you need to:

• Bring existing buildings, roads and boundaries into a CAD drawing
• Draw proposed work over a consistent mapping base
• Control layers, colours and lineweights for your office standard
• Measure between mapped features as part of an early design check
• Crop the displayed mapping to suit different drawing sheets
• Share a CAD base with another consultant who works in DWG

For the available UK Planning Maps options, see the Ordnance Survey DWG and DXF maps page.

DWG, DXF or PDF: which file do you need?

The right format depends on what happens next, not simply on which one sounds most professional.

Choose DWG when the map will be opened and edited in a DWG-based CAD workflow. It is a natural choice for an AutoCAD-led project and is also supported by a range of other design applications. Check the receiving software and version before ordering or sharing it.

Choose DXF when you need a drawing-interchange format. Autodesk describes DXF as a tagged representation of the information in an AutoCAD drawing file. It is often a sensible option when moving vector drawing information between different CAD packages, but you should still confirm that your particular software imports the required content properly.

Choose PDF when you need a fixed document rather than editable vector mapping. A correctly prepared PDF is straightforward to review, print and upload with an application. It may be all a homeowner or planning agent needs for a simple location plan. It is not the best starting point when an architect needs to switch layers, alter line presentation or build proposed work into the same CAD drawing.

What should an OS CAD base contain?

The map should cover the full area needed for the task. For a house extension, that might be the property, its access, neighbouring buildings and enough street context to prepare the site drawings. A larger scheme may need a wider area for access, landscape, drainage or consultant coordination.

UK Planning Maps supplies CAD mapping based on Ordnance Survey MasterMap. Its MasterMap information page describes the mapped features and available vector formats. The mapping is a useful representation of existing topographic features, but it is important to understand what it is not.

An OS CAD map is not a measured topographical survey. It should not be relied on for precise building levels, construction setting-out or a detailed assessment of features that may have changed since the mapping was captured. It also does not settle a legal boundary. Where a design depends on exact dimensions, levels, drainage or ownership, use the appropriate survey or title information and professional advice.

Check these points before ordering a DWG map

The area of coverage

Preview the map and make sure the complete project area is included. Think beyond the proposed building footprint. Will you need the highway frontage, the full access, neighbouring structures or space for a consultant's work? A slightly wider, deliberately chosen area is more useful than discovering an important corner is missing.

Your CAD software and file version

Confirm that the person opening the map can use the supplied DWG version. File compatibility matters when a drawing moves between older and newer releases. Autodesk's DWG compatibility guidance notes that newer AutoCAD products can work with older DWG formats, while an older product may not open a newer file.

Units, grid information and position

Agree the project units and drawing origin before design work starts. After opening the file, check a known distance and inspect any supplied grid information. If the map must coordinate with survey, engineering, GIS or BIM information, confirm the positioning requirements with the wider team rather than assuming that every incoming file uses the same setup.

Current UK Planning Maps pages describe grid and positioning information in different ways for different products and account types, so check the specification shown for the actual file you are ordering. That is safer than relying on a general label such as “CAD map”.

Layers and drawing presentation

Open the layer manager before changing the map. Work out which layers contain buildings, roads, text and other features, then decide how they should sit within your office drawing standard. Keep an untouched copy of the downloaded file so you can return to it if a layer is accidentally removed or altered.

Whether height information is needed

Most planning drawings do not become accurate level drawings simply because a CAD map has been used. If contours or terrain information matter, decide what level of height data the project actually needs. UK Planning Maps provides separate information about contours and Digital Terrain Model data available with vector mapping.

How a DWG map fits into a planning workflow

Start with the map as the existing context. Keep the original data identifiable, then add proposed buildings, access, parking, landscaping and annotations on your own controlled layers. Use clear lineweights or a key so existing and proposed work cannot be confused when the drawing is printed to PDF.

The location plan and site plan still have to do their planning jobs. A DWG file is a working format; it is not automatically a finished submission drawing. The final sheet may need a title, stated scale, north point, red application boundary, blue ownership boundary where relevant and the correct mapping or licence details. Check the local planning authority's validation list before issue.

Common problems when using DWG mapping

The first is treating mapped lines as surveyed construction information. They are a valuable design base, but critical dimensions and levels should come from the right survey.

The second is importing the file without checking units or position. If the drawing looks unusually large, small or far from the expected origin, stop and check the setup before scaling or moving anything.

Another common problem is losing the source layers in a busy project file. Keep the base organised and avoid flattening everything into one layer. It will be much easier to control the final drawing and explain what information came from where.

Order the file the project will actually use

Before buying, ask who will open the map, which software they use, how much area they need and whether the project requires separate height or survey information. Preview the coverage carefully and keep the downloaded original with the project records.

The best DWG map for architects is not necessarily the largest or most technical option. It is the file that arrives in the right format, covers the right area and fits cleanly into the agreed drawing workflow. For examples and current options, use the prices and samples page or call UK Planning Maps before ordering.
