A planning application can be delayed before anyone considers the design of your extension or development. One of the most common reasons is simpler: the submitted map does not clearly show the application site, its boundaries, or the work being proposed.

A site plan for planning permission gives the local planning authority the immediate context it needs. It shows the land or property affected by the application in relation to neighboring buildings, roads, access points, and other relevant features. Get this document right at the start, and the rest of your submission has a much clearer foundation.

What is a site plan?

A site plan is a scaled drawing of the application site and the land immediately around it. It is usually more detailed than a location plan and is often submitted alongside one. The location plan identifies the property within the wider area. The site plan zooms in to show what is on and around the site.

For a house extension, this may mean showing the existing house, garden, driveway, nearby homes, and the footprint of the proposed extension. For a plot of land, it may show field boundaries, access routes, neighboring parcels, trees, existing structures, or parking areas.

Planning authorities use the plan to understand exactly where development is proposed and whether it could affect adjacent land, access, protected features, or neighboring properties. It should be clear enough that a planning officer does not have to guess where your red-line boundary begins or what the proposal relates to.

Site plan for planning permission: what it must show

Requirements can vary between local planning authorities, so always check the validation list for the authority handling your application. That said, a compliant site plan will normally include several core details.

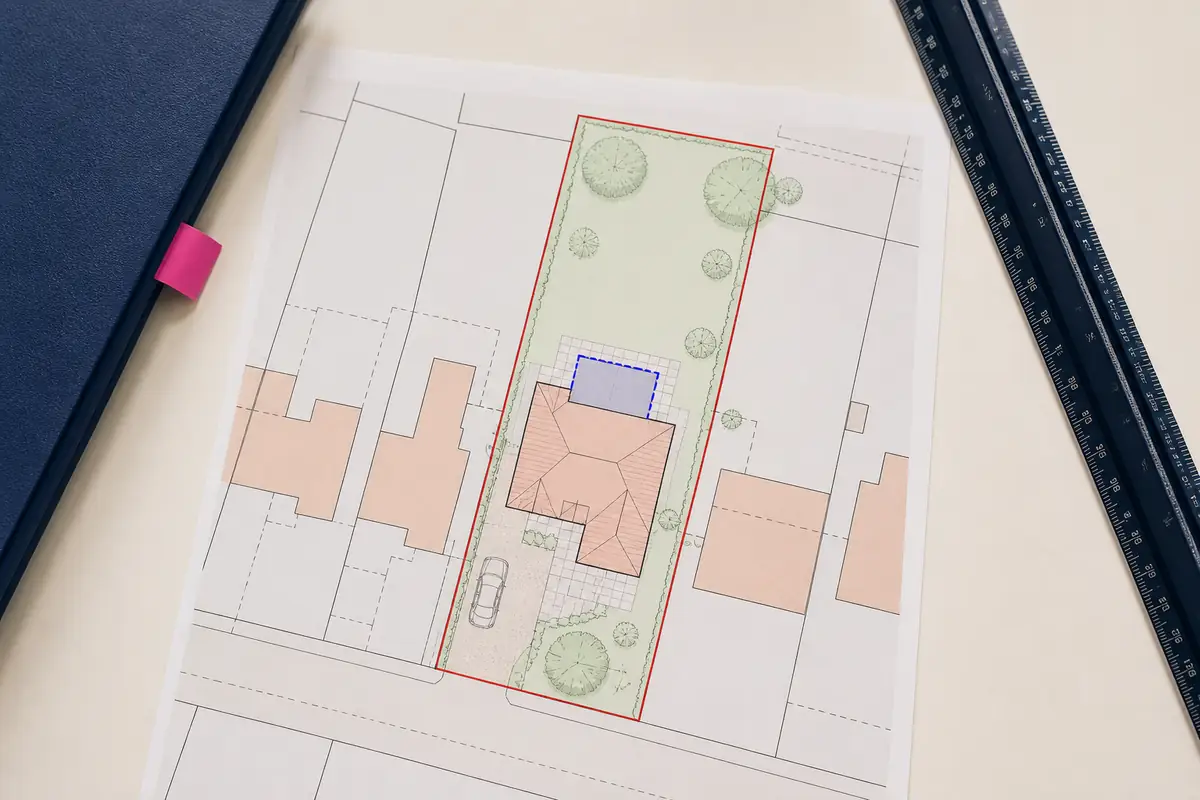

The application site must be marked with a red line around all land relevant to the proposal. This is not simply the footprint of a new extension. It should include the full area needed for the development, such as access, parking, landscaping, garden land, or land where drainage work will take place.

If you own other land that touches or is close to the application site, it may need to be identified with a blue line. This helps the authority understand the wider land ownership position. If no adjoining land is owned, that is normally not required, but it is worth confirming against the local requirements.

Your plan should also show a north arrow, a stated scale, and enough surrounding detail to put the site into context. Roads, buildings, access points, boundaries, and notable physical features should be visible where relevant. The plan needs to remain legible when printed or viewed as a PDF, so avoid selecting an area that is either too tightly cropped or unnecessarily wide.

For many applications, the proposed work should be shown or labeled clearly. This does not replace architectural existing and proposed drawings, but it makes the map easier to interpret. For example, a simple label such as “proposed rear extension,” “new dwelling,” or “change of use area” can prevent confusion.

Choosing the right scale

Site plans are commonly supplied at 1:200 or 1:500. The right choice depends on the size and complexity of the site.

A 1:200 plan is useful where close detail matters, such as a standard residential property, extension, outbuilding, or small infill development. It allows buildings, boundaries, parking spaces, and garden areas to be seen more clearly.

A 1:500 plan provides a little more context and can suit larger plots, small developments, land parcels, or sites where access and neighboring features need to be shown. For a larger rural or commercial site, a broader scale may be appropriate, provided the key details remain clear.

The scale should never be chosen simply because it fits more land on the page. A broad plan can make labels and boundaries difficult to read. Conversely, a close plan may omit the nearby road, junction, or adjacent buildings that help explain the proposal. The best scale is the one that shows the whole application site and the relevant surroundings without sacrificing clarity.

Site plan, block plan, and location plan: the difference

These terms are often used interchangeably, but they serve different purposes. Knowing the difference can save you from ordering or submitting the wrong map.

A location plan generally shows the site in its wider setting, usually at 1:1250 in urban areas or 1:2500 in rural areas. It identifies the property or land parcel and includes the red-line boundary.

A site plan often refers to the closer, more detailed plan at 1:200 or 1:500. It shows the relationship between the proposal and features within or near the site.

A block plan is another name commonly used for a detailed site-level drawing. Some authorities use “site plan” and “block plan” to mean the same thing. Others ask for both a location plan and a block plan. The wording on the local validation checklist matters more than the label used by a mapping provider.

For a straightforward householder application, you will often need a location plan plus a detailed site or block plan. Larger applications may also require drainage plans, elevations, floor plans, landscaping drawings, highway plans, or other specialist documents.

Common mistakes that make a plan harder to validate

A plan can be based on accurate mapping and still cause problems if the presentation is incomplete. The red line is frequently drawn too narrowly, especially where a new driveway, bin store, parking space, or drainage area sits outside the building footprint. If that land forms part of the proposal, include it.

Another issue is unclear boundary marking. A thin red line laid over a building edge or busy mapping detail can be difficult to see. Use a strong, continuous line and check the final PDF at normal viewing size before submitting it.

Applicants also sometimes submit a screenshot from a consumer map or an old estate-agent plan. These may lack the required scale, scale bar, current detail, licensing, or sufficient context. A planning authority may then request a replacement, adding avoidable time to the application.

Finally, do not assume an existing plan automatically suits a new proposal. If land ownership, access arrangements, the development area, or the site layout has changed, update the boundary and annotations to match the application being made.

A practical way to prepare your plan

Start by confirming what your local authority asks for. Check the accepted scales, any preferred paper size, and whether it specifies a location plan, site plan, block plan, or all three. This takes only a few minutes and avoids making assumptions based on a previous application or advice from another council area.

Next, choose current licensed mapping at the scale that fits the project. Search for the site by postcode, address, coordinates, or directly on a map. Set the map area so it includes the entire application land and enough surrounding context, then add the red boundary and any required blue boundary. A north arrow, scale information, and clear proposal labels should be retained on the final document.

With UK Planning Maps, applicants can create a professionally licensed Ordnance Survey MasterMap-based plan online, add boundaries and annotations, and download the finished PDF immediately. Standard planning scales are available, which is useful when a deadline is close or an authority has asked for a corrected plan. Professionals who need plans repeatedly can also work with CAD mapping files and trade options.

Before uploading, compare the final plan against the application form, design drawings, and ownership certificate. The address, development area, and description of the proposal should all tell the same story. A site plan is not a standalone formality. It is the map that connects every part of the application.

When a more detailed drawing is needed

A planning site plan is not always enough on its own. If your proposal changes vehicle access, affects trees, alters levels, includes drainage works, or sits close to a boundary, the authority may request additional drawings. Those documents need more technical detail than a standard mapping plan can provide.

That does not reduce the value of the site plan. It gives those specialist drawings a clear reference point and helps establish the precise extent of the application from the outset. For complex sites, take advice from an architect, planning consultant, surveyor, or drainage specialist before finalizing the boundary.

A clear, correctly scaled plan will not guarantee planning permission, but it will help your application reach the right decision stage without a preventable validation query. Choose the area carefully, mark the land honestly, and make every line easy for the reviewer to understand.
